Included schema mathml3-common.xsd
Namespace http://www.w3.org/1998/Math/MathML
Properties
attribute form default unqualified
element form default qualified
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Element m:math
Namespace http://www.w3.org/1998/Math/MathML
Diagram
Diagrammathml3-presentation_xsd.tmp#math.attributesmathml3-strict-content_xsd.tmp#applymathml3-strict-content_xsd.tmp#bindmathml3-strict-content_xsd.tmp#cimathml3-strict-content_xsd.tmp#cnmathml3-strict-content_xsd.tmp#csymbolmathml3-strict-content_xsd.tmp#cbytesmathml3-strict-content_xsd.tmp#cerrormathml3-strict-content_xsd.tmp#csmathml3-strict-content_xsd.tmp#sharemathml3-content_xsd.tmp#piecewisemathml3-content_xsd.tmp#DeprecatedContExpmathml3-content_xsd.tmp#interval.classmathml3-content_xsd.tmp#unary-functional.classmathml3-content_xsd.tmp#lambda.classmathml3-content_xsd.tmp#nary-functional.classmathml3-content_xsd.tmp#quotientmathml3-content_xsd.tmp#dividemathml3-content_xsd.tmp#minusmathml3-content_xsd.tmp#powermathml3-content_xsd.tmp#remmathml3-content_xsd.tmp#rootmathml3-content_xsd.tmp#binary-arith.classmathml3-content_xsd.tmp#factorialmathml3-content_xsd.tmp#absmathml3-content_xsd.tmp#conjugatemathml3-content_xsd.tmp#argmathml3-content_xsd.tmp#realmathml3-content_xsd.tmp#imaginarymathml3-content_xsd.tmp#floormathml3-content_xsd.tmp#ceilingmathml3-content_xsd.tmp#expmathml3-content_xsd.tmp#unary-arith.classmathml3-content_xsd.tmp#nary-minmax.classmathml3-content_xsd.tmp#nary-arith.classmathml3-content_xsd.tmp#nary-logical.classmathml3-content_xsd.tmp#unary-logical.classmathml3-content_xsd.tmp#binary-logical.classmathml3-content_xsd.tmp#quantifier.classmathml3-content_xsd.tmp#nary-reln.classmathml3-content_xsd.tmp#binary-reln.classmathml3-content_xsd.tmp#int.classmathml3-content_xsd.tmp#Differential-Operator.classmathml3-content_xsd.tmp#partialdiff.classmathml3-content_xsd.tmp#unary-veccalc.classmathml3-content_xsd.tmp#nary-setlist-constructor.classmathml3-content_xsd.tmp#nary-set.classmathml3-content_xsd.tmp#binary-set.classmathml3-content_xsd.tmp#nary-set-reln.classmathml3-content_xsd.tmp#unary-set.classmathml3-content_xsd.tmp#sum.classmathml3-content_xsd.tmp#product.classmathml3-content_xsd.tmp#limit.classmathml3-content_xsd.tmp#unary-elementary.classmathml3-content_xsd.tmp#nary-stats.classmathml3-content_xsd.tmp#nary-constructor.classmathml3-content_xsd.tmp#unary-linalg.classmathml3-content_xsd.tmp#nary-linalg.classmathml3-content_xsd.tmp#binary-linalg.classmathml3-content_xsd.tmp#constant-set.classmathml3-content_xsd.tmp#constant-arith.classmathml3-strict-content_xsd.tmp#ContExpmathml3-content_xsd.tmp#PresentationExpressionmathml3-common_xsd.tmp#semantics_semanticsmathml3-common_xsd.tmp#semanticsmathml3-strict-content_xsd.tmp#MathExpression
Properties
content complex
Used by
Model
Children m:DeprecatedContExp, m:Differential-Operator.class, m:PresentationExpression, m:abs, m:apply, m:arg, m:binary-linalg.class, m:binary-logical.class, m:binary-reln.class, m:binary-set.class, m:bind, m:cbytes, m:ceiling, m:cerror, m:ci, m:cn, m:conjugate, m:constant-arith.class, m:constant-set.class, m:cs, m:csymbol, m:divide, m:exp, m:factorial, m:floor, m:imaginary, m:int.class, m:interval.class, m:lambda.class, m:limit.class, m:minus, m:nary-arith.class, m:nary-constructor.class, m:nary-functional.class, m:nary-linalg.class, m:nary-logical.class, m:nary-minmax.class, m:nary-reln.class, m:nary-set-reln.class, m:nary-set.class, m:nary-setlist-constructor.class, m:nary-stats.class, m:partialdiff.class, m:piecewise, m:power, m:product.class, m:quantifier.class, m:quotient, m:real, m:rem, m:root, m:semantics, m:share, m:sum.class, m:unary-elementary.class, m:unary-functional.class, m:unary-linalg.class, m:unary-logical.class, m:unary-set.class, m:unary-veccalc.class
Instance

<m:math accent="" accentunder="" align="" alignmentscope="" altimg="" altimg-height="" altimg-valign="" altimg-width="" alttext="" bevelled="" cdgroup="" charalign="" charspacing="" class="" close="" columnalign="" columnlines="" columnspacing="" columnspan="" columnwidth="" crossout="" decimalpoint="" denomalign="" depth="" dir="" display="" displaystyle="" edge="" equalcolumns="" equalrows="" fence="" form="" frame="" framespacing="" groupalign="" height="" href="" id="" indentalign="" indentalignfirst="" indentalignlast="" indentshift="" indentshiftfirst="" indentshiftlast="" indenttarget="" infixlinebreakstyle="" largeop="" leftoverhang="" length="" linebreak="" linebreakmultchar="" linebreakstyle="" lineleading="" linethickness="" location="" longdivstyle="" lquote="" lspace="" macros="" mathbackground="" mathcolor="" mathsize="" mathvariant="" maxsize="" maxwidth="" minlabelspacing="" minsize="" mode="" movablelimits="" mslinethickness="" notation="" numalign="" open="" other="" overflow="" position="" rightoverhang="" rowalign="" rowlines="" rowspacing="" rowspan="" rquote="" rspace="" scriptlevel="" scriptminsize="" scriptsizemultiplier="" selection="" separator="" separators="" shift="" side="" stackalign="" stretchy="" style="" subscriptshift="" superscriptshift="" symmetric="" valign="" width="" xref="" xmlns:m="http://www.w3.org/1998/Math/MathML">
  <m:apply class="" href="" id="" other="" style="" xref="">{1,1}</m:apply>
  <m:bind class="" href="" id="" other="" style="" xref="">{1,1}</m:bind>
  <m:ci class="" definitionURL="" encoding="" href="" id="" other="" style="" type="" xref="">{1,1}</m:ci>
  <m:cn base="" class="" definitionURL="" encoding="" href="" id="" other="" style="" type="" xref="">{1,1}</m:cn>
  <m:csymbol cd="" class="" definitionURL="" encoding="" href="" id="" other="" style="" type="" xref="">{1,1}</m:csymbol>
  <m:cbytes class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:cbytes>
  <m:cerror class="" href="" id="" other="" style="" xref="">{1,1}</m:cerror>
  <m:cs class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:cs>
  <m:share class="" href="" id="" other="" src="" style="" xref="">{1,1}</m:share>
  <m:piecewise class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:piecewise>
  <m:DeprecatedContExp>{1,1}</m:DeprecatedContExp>
  <m:interval.class class="" closure="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:interval.class>
  <m:unary-functional.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:unary-functional.class>
  <m:lambda.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:lambda.class>
  <m:nary-functional.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-functional.class>
  <m:quotient class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:quotient>
  <m:divide class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:divide>
  <m:minus class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:minus>
  <m:power class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:power>
  <m:rem class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:rem>
  <m:root class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:root>
  <m:factorial class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:factorial>
  <m:abs class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:abs>
  <m:conjugate class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:conjugate>
  <m:arg class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:arg>
  <m:real class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:real>
  <m:imaginary class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:imaginary>
  <m:floor class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:floor>
  <m:ceiling class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:ceiling>
  <m:exp class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:exp>
  <m:nary-minmax.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-minmax.class>
  <m:nary-arith.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-arith.class>
  <m:nary-logical.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-logical.class>
  <m:unary-logical.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:unary-logical.class>
  <m:binary-logical.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:binary-logical.class>
  <m:quantifier.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:quantifier.class>
  <m:nary-reln.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-reln.class>
  <m:binary-reln.class>{1,1}</m:binary-reln.class>
  <m:int.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:int.class>
  <m:Differential-Operator.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:Differential-Operator.class>
  <m:partialdiff.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:partialdiff.class>
  <m:unary-veccalc.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:unary-veccalc.class>
  <m:nary-setlist-constructor.class>{1,1}</m:nary-setlist-constructor.class>
  <m:nary-set.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-set.class>
  <m:binary-set.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:binary-set.class>
  <m:nary-set-reln.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-set-reln.class>
  <m:unary-set.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:unary-set.class>
  <m:sum.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:sum.class>
  <m:product.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:product.class>
  <m:limit.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:limit.class>
  <m:unary-elementary.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:unary-elementary.class>
  <m:nary-stats.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-stats.class>
  <m:nary-constructor.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-constructor.class>
  <m:unary-linalg.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:unary-linalg.class>
  <m:nary-linalg.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-linalg.class>
  <m:binary-linalg.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:binary-linalg.class>
  <m:constant-set.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:constant-set.class>
  <m:constant-arith.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:constant-arith.class>
  <m:PresentationExpression>{1,1}</m:PresentationExpression>
  <m:semantics cd="" class="" definitionURL="" encoding="" href="" id="" name="" other="" style="" xref="">{1,1}</m:semantics>
</m:math>
Attributes
QName Type Use
accent restriction of xs:token optional
accentunder restriction of xs:token optional
align restriction of xs:token optional
alignmentscope restriction of list of restriction of xs:token optional
altimg xs:anyURI optional
altimg-height m:length optional
altimg-valign union of(m:length, restriction of xs:token, restriction of xs:token, restriction of xs:token) optional
altimg-width m:length optional
alttext optional
bevelled restriction of xs:token optional
cdgroup xs:anyURI optional
charalign restriction of xs:token optional
charspacing union of(m:length, restriction of xs:token, restriction of xs:token, restriction of xs:token) optional
class xs:NMTOKENS optional
close optional
columnalign restriction of list of m:columnalignstyle optional
columnlines restriction of list of m:linestyle optional
columnspacing restriction of list of m:length optional
columnspan m:positive-integer optional
columnwidth restriction of list of union of(m:length, restriction of xs:token, restriction of xs:token) optional
crossout list of restriction of xs:token optional
decimalpoint m:character optional
denomalign restriction of xs:token optional
depth m:length optional
dir restriction of xs:token optional
display restriction of xs:token optional
displaystyle restriction of xs:token optional
edge restriction of xs:token optional
equalcolumns restriction of xs:token optional
equalrows restriction of xs:token optional
fence restriction of xs:token optional
form restriction of xs:token optional
frame m:linestyle optional
framespacing restriction of list of union of(m:length, m:length) optional
groupalign m:group-alignment-list-list optional
height m:length optional
href xs:anyURI optional
id xs:ID optional
indentalign restriction of xs:token optional
indentalignfirst restriction of xs:token optional
indentalignlast restriction of xs:token optional
indentshift m:length optional
indentshiftfirst union of(m:length, restriction of xs:token) optional
indentshiftlast union of(m:length, restriction of xs:token) optional
indenttarget optional
infixlinebreakstyle restriction of xs:token optional
largeop restriction of xs:token optional
leftoverhang m:length optional
length m:unsigned-integer optional
linebreak restriction of xs:token optional
linebreakmultchar optional
linebreakstyle restriction of xs:token optional
lineleading m:length optional
linethickness union of(m:length, restriction of xs:token, restriction of xs:token, restriction of xs:token) optional
location restriction of xs:token optional
longdivstyle restriction of xs:token optional
lquote optional
lspace m:length optional
macros xs:string optional
mathbackground union of(m:color, restriction of xs:token) optional
mathcolor m:color optional
mathsize union of(m:length, restriction of xs:token, restriction of xs:token, restriction of xs:token) optional
mathvariant restriction of xs:token optional
maxsize union of(m:length, restriction of xs:token) optional
maxwidth m:length optional
minlabelspacing m:length optional
minsize m:length optional
mode xs:string optional
movablelimits restriction of xs:token optional
mslinethickness union of(m:length, restriction of xs:token, restriction of xs:token, restriction of xs:token) optional
notation optional
numalign restriction of xs:token optional
open optional
other optional
overflow restriction of xs:token optional
position m:integer optional
rightoverhang m:length optional
rowalign restriction of list of m:verticalalign optional
rowlines restriction of list of m:linestyle optional
rowspacing restriction of list of m:length optional
rowspan m:positive-integer optional
rquote optional
rspace m:length optional
scriptlevel m:integer optional
scriptminsize m:length optional
scriptsizemultiplier m:number optional
selection m:positive-integer optional
separator restriction of xs:token optional
separators optional
shift m:integer optional
side restriction of xs:token optional
stackalign restriction of xs:token optional
stretchy restriction of xs:token optional
style xs:string optional
subscriptshift m:length optional
superscriptshift m:length optional
symmetric restriction of xs:token optional
valign m:length optional
width m:length optional
xref optional
Wildcard: ANY attribute from ANY namespace OTHER than 'http://www.w3.org/1998/Math/MathML'
Source

<xs:element name="math">
  <xs:complexType>
    <xs:group minOccurs="0" maxOccurs="unbounded" ref="m:MathExpression"/>
    <xs:attributeGroup ref="m:math.attributes"/>
  </xs:complexType>
</xs:element>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Element m:annotation
Namespace http://www.w3.org/1998/Math/MathML

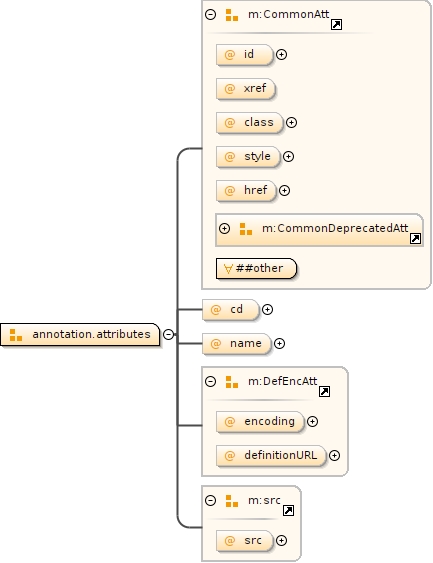

Diagram
Diagrammathml3-common_xsd.tmp#annotation.attributes
Properties
content complex
mixed true
Used by
Model
Attributes
QName Type Use
cd xs:NCName optional
class xs:NMTOKENS optional
definitionURL xs:anyURI optional
encoding xs:string optional
href xs:anyURI optional
id xs:ID optional
name xs:NCName optional
other optional
src xs:anyURI optional
style xs:string optional
xref optional
Wildcard: ANY attribute from ANY namespace OTHER than 'http://www.w3.org/1998/Math/MathML'
Source

<xs:element name="annotation">
  <xs:complexType mixed="true">
    <xs:attributeGroup ref="m:annotation.attributes"/>
  </xs:complexType>
</xs:element>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Element m:annotation-xml
Namespace http://www.w3.org/1998/Math/MathML

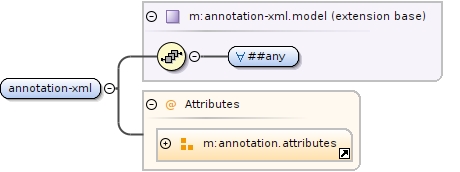

Diagram
Diagrammathml3-common_xsd.tmp#annotation-xml.modelmathml3-common_xsd.tmp#annotation.attributes
Type extension of m:annotation-xml.model
Type hierarchy
Properties
content complex
Used by
Model
ANY element from ANY namespace
Attributes
QName Type Use
cd xs:NCName optional
class xs:NMTOKENS optional
definitionURL xs:anyURI optional
encoding xs:string optional
href xs:anyURI optional
id xs:ID optional
name xs:NCName optional
other optional
src xs:anyURI optional
style xs:string optional
xref optional
Wildcard: ANY attribute from ANY namespace OTHER than 'http://www.w3.org/1998/Math/MathML'
Source

<xs:element name="annotation-xml">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="m:annotation-xml.model">
        <xs:attributeGroup ref="m:annotation.attributes"/>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Element m:semantics / m:semantics
Namespace http://www.w3.org/1998/Math/MathML

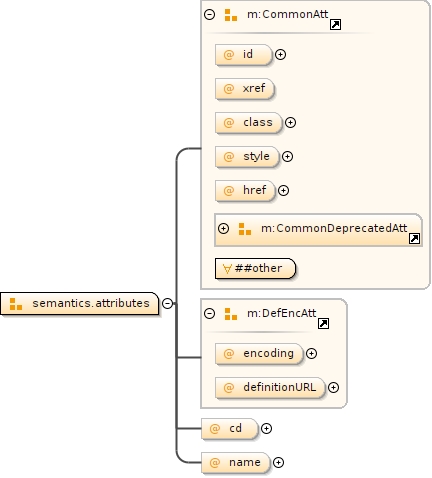

Diagram
Diagrammathml3-common_xsd.tmp#semantics.attributesmathml3-strict-content_xsd.tmp#applymathml3-strict-content_xsd.tmp#bindmathml3-strict-content_xsd.tmp#cimathml3-strict-content_xsd.tmp#cnmathml3-strict-content_xsd.tmp#csymbolmathml3-strict-content_xsd.tmp#cbytesmathml3-strict-content_xsd.tmp#cerrormathml3-strict-content_xsd.tmp#csmathml3-strict-content_xsd.tmp#sharemathml3-content_xsd.tmp#piecewisemathml3-content_xsd.tmp#DeprecatedContExpmathml3-content_xsd.tmp#interval.classmathml3-content_xsd.tmp#unary-functional.classmathml3-content_xsd.tmp#lambda.classmathml3-content_xsd.tmp#nary-functional.classmathml3-content_xsd.tmp#quotientmathml3-content_xsd.tmp#dividemathml3-content_xsd.tmp#minusmathml3-content_xsd.tmp#powermathml3-content_xsd.tmp#remmathml3-content_xsd.tmp#rootmathml3-content_xsd.tmp#binary-arith.classmathml3-content_xsd.tmp#factorialmathml3-content_xsd.tmp#absmathml3-content_xsd.tmp#conjugatemathml3-content_xsd.tmp#argmathml3-content_xsd.tmp#realmathml3-content_xsd.tmp#imaginarymathml3-content_xsd.tmp#floormathml3-content_xsd.tmp#ceilingmathml3-content_xsd.tmp#expmathml3-content_xsd.tmp#unary-arith.classmathml3-content_xsd.tmp#nary-minmax.classmathml3-content_xsd.tmp#nary-arith.classmathml3-content_xsd.tmp#nary-logical.classmathml3-content_xsd.tmp#unary-logical.classmathml3-content_xsd.tmp#binary-logical.classmathml3-content_xsd.tmp#quantifier.classmathml3-content_xsd.tmp#nary-reln.classmathml3-content_xsd.tmp#binary-reln.classmathml3-content_xsd.tmp#int.classmathml3-content_xsd.tmp#Differential-Operator.classmathml3-content_xsd.tmp#partialdiff.classmathml3-content_xsd.tmp#unary-veccalc.classmathml3-content_xsd.tmp#nary-setlist-constructor.classmathml3-content_xsd.tmp#nary-set.classmathml3-content_xsd.tmp#binary-set.classmathml3-content_xsd.tmp#nary-set-reln.classmathml3-content_xsd.tmp#unary-set.classmathml3-content_xsd.tmp#sum.classmathml3-content_xsd.tmp#product.classmathml3-content_xsd.tmp#limit.classmathml3-content_xsd.tmp#unary-elementary.classmathml3-content_xsd.tmp#nary-stats.classmathml3-content_xsd.tmp#nary-constructor.classmathml3-content_xsd.tmp#unary-linalg.classmathml3-content_xsd.tmp#nary-linalg.classmathml3-content_xsd.tmp#binary-linalg.classmathml3-content_xsd.tmp#constant-set.classmathml3-content_xsd.tmp#constant-arith.classmathml3-strict-content_xsd.tmp#ContExpmathml3-content_xsd.tmp#PresentationExpressionmathml3-common_xsd.tmp#semantics_semanticsmathml3-common_xsd.tmp#semanticsmathml3-strict-content_xsd.tmp#MathExpressionmathml3-common_xsd.tmp#annotationmathml3-common_xsd.tmp#annotation-xml
Properties
content complex
Model
Children m:DeprecatedContExp, m:Differential-Operator.class, m:PresentationExpression, m:abs, m:annotation, m:annotation-xml, m:apply, m:arg, m:binary-linalg.class, m:binary-logical.class, m:binary-reln.class, m:binary-set.class, m:bind, m:cbytes, m:ceiling, m:cerror, m:ci, m:cn, m:conjugate, m:constant-arith.class, m:constant-set.class, m:cs, m:csymbol, m:divide, m:exp, m:factorial, m:floor, m:imaginary, m:int.class, m:interval.class, m:lambda.class, m:limit.class, m:minus, m:nary-arith.class, m:nary-constructor.class, m:nary-functional.class, m:nary-linalg.class, m:nary-logical.class, m:nary-minmax.class, m:nary-reln.class, m:nary-set-reln.class, m:nary-set.class, m:nary-setlist-constructor.class, m:nary-stats.class, m:partialdiff.class, m:piecewise, m:power, m:product.class, m:quantifier.class, m:quotient, m:real, m:rem, m:root, m:semantics, m:share, m:sum.class, m:unary-elementary.class, m:unary-functional.class, m:unary-linalg.class, m:unary-logical.class, m:unary-set.class, m:unary-veccalc.class
Instance

<m:semantics cd="" class="" definitionURL="" encoding="" href="" id="" name="" other="" style="" xref="" xmlns:m="http://www.w3.org/1998/Math/MathML">
  <m:apply class="" href="" id="" other="" style="" xref="">{1,1}</m:apply>
  <m:bind class="" href="" id="" other="" style="" xref="">{1,1}</m:bind>
  <m:ci class="" definitionURL="" encoding="" href="" id="" other="" style="" type="" xref="">{1,1}</m:ci>
  <m:cn base="" class="" definitionURL="" encoding="" href="" id="" other="" style="" type="" xref="">{1,1}</m:cn>
  <m:csymbol cd="" class="" definitionURL="" encoding="" href="" id="" other="" style="" type="" xref="">{1,1}</m:csymbol>
  <m:cbytes class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:cbytes>
  <m:cerror class="" href="" id="" other="" style="" xref="">{1,1}</m:cerror>
  <m:cs class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:cs>
  <m:share class="" href="" id="" other="" src="" style="" xref="">{1,1}</m:share>
  <m:piecewise class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:piecewise>
  <m:DeprecatedContExp>{1,1}</m:DeprecatedContExp>
  <m:interval.class class="" closure="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:interval.class>
  <m:unary-functional.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:unary-functional.class>
  <m:lambda.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:lambda.class>
  <m:nary-functional.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-functional.class>
  <m:quotient class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:quotient>
  <m:divide class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:divide>
  <m:minus class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:minus>
  <m:power class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:power>
  <m:rem class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:rem>
  <m:root class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:root>
  <m:factorial class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:factorial>
  <m:abs class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:abs>
  <m:conjugate class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:conjugate>
  <m:arg class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:arg>
  <m:real class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:real>
  <m:imaginary class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:imaginary>
  <m:floor class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:floor>
  <m:ceiling class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:ceiling>
  <m:exp class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:exp>
  <m:nary-minmax.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-minmax.class>
  <m:nary-arith.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-arith.class>
  <m:nary-logical.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-logical.class>
  <m:unary-logical.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:unary-logical.class>
  <m:binary-logical.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:binary-logical.class>
  <m:quantifier.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:quantifier.class>
  <m:nary-reln.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-reln.class>
  <m:binary-reln.class>{1,1}</m:binary-reln.class>
  <m:int.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:int.class>
  <m:Differential-Operator.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:Differential-Operator.class>
  <m:partialdiff.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:partialdiff.class>
  <m:unary-veccalc.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:unary-veccalc.class>
  <m:nary-setlist-constructor.class>{1,1}</m:nary-setlist-constructor.class>
  <m:nary-set.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-set.class>
  <m:binary-set.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:binary-set.class>
  <m:nary-set-reln.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-set-reln.class>
  <m:unary-set.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:unary-set.class>
  <m:sum.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:sum.class>
  <m:product.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:product.class>
  <m:limit.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:limit.class>
  <m:unary-elementary.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:unary-elementary.class>
  <m:nary-stats.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-stats.class>
  <m:nary-constructor.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-constructor.class>
  <m:unary-linalg.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:unary-linalg.class>
  <m:nary-linalg.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:nary-linalg.class>
  <m:binary-linalg.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:binary-linalg.class>
  <m:constant-set.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:constant-set.class>
  <m:constant-arith.class class="" definitionURL="" encoding="" href="" id="" other="" style="" xref="">{1,1}</m:constant-arith.class>
  <m:PresentationExpression>{1,1}</m:PresentationExpression>
  <m:semantics cd="" class="" definitionURL="" encoding="" href="" id="" name="" other="" style="" xref="">{1,1}</m:semantics>
  <m:annotation cd="" class="" definitionURL="" encoding="" href="" id="" name="" other="" src="" style="" xref="">{1,1}</m:annotation>
  <m:annotation-xml cd="" class="" definitionURL="" encoding="" href="" id="" name="" other="" src="" style="" xref="">{1,1}</m:annotation-xml>
</m:semantics>
Attributes
QName Type Use
cd xs:NCName optional
class xs:NMTOKENS optional
definitionURL xs:anyURI optional
encoding xs:string optional
href xs:anyURI optional
id xs:ID optional
name xs:NCName optional
other optional
style xs:string optional
xref optional
Wildcard: ANY attribute from ANY namespace OTHER than 'http://www.w3.org/1998/Math/MathML'
Source

<xs:element name="semantics">
  <xs:complexType>
    <xs:sequence>
      <xs:group ref="m:MathExpression"/>
      <xs:choice minOccurs="0" maxOccurs="unbounded">
        <xs:element ref="m:annotation"/>
        <xs:element ref="m:annotation-xml"/>
      </xs:choice>
    </xs:sequence>
    <xs:attributeGroup ref="m:semantics.attributes"/>
  </xs:complexType>
</xs:element>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Simple Type m:length
Namespace http://www.w3.org/1998/Math/MathML
Diagram
Diagram
Type restriction of xs:string
Facets
pattern \s*((-?[0-9]*([0-9]\.?|\.[0-9])[0-9]*(e[mx]|in|cm|mm|p[xtc]|%)?)|(negative)?((very){0,2}thi(n|ck)|medium)mathspace)\s*
Used by
Attributes m:DeprecatedTokenAtt/@fontsize, m:math.attributes/@altimg-height, m:math.attributes/@altimg-width, m:math.attributes/@maxwidth, m:mglyph.attributes/@height, m:mglyph.attributes/@valign, m:mglyph.attributes/@width, m:mo.attributes/@indentshift, m:mo.attributes/@lineleading, m:mo.attributes/@lspace, m:mo.attributes/@minsize, m:mo.attributes/@rspace, m:msline.attributes/@leftoverhang, m:msline.attributes/@rightoverhang, m:mspace.attributes/@depth, m:mspace.attributes/@height, m:mspace.attributes/@indentshift, m:mspace.attributes/@width, m:mstyle.deprecatedattributes/@mediummathspace, m:mstyle.deprecatedattributes/@thickmathspace, m:mstyle.deprecatedattributes/@thinmathspace, m:mstyle.deprecatedattributes/@verythickmathspace, m:mstyle.deprecatedattributes/@verythinmathspace, m:mstyle.deprecatedattributes/@veryverythickmathspace, m:mstyle.deprecatedattributes/@veryverythinmathspace, m:mstyle.generalattributes/@depth, m:mstyle.generalattributes/@height, m:mstyle.generalattributes/@indentshift, m:mstyle.generalattributes/@leftoverhang, m:mstyle.generalattributes/@lineleading, m:mstyle.generalattributes/@lspace, m:mstyle.generalattributes/@minlabelspacing, m:mstyle.generalattributes/@minsize, m:mstyle.generalattributes/@rightoverhang, m:mstyle.generalattributes/@rspace, m:mstyle.generalattributes/@subscriptshift, m:mstyle.generalattributes/@superscriptshift, m:mstyle.generalattributes/@valign, m:mstyle.generalattributes/@width, m:mstyle.specificattributes/@scriptminsize, m:msub.attributes/@subscriptshift, m:msubsup.attributes/@subscriptshift, m:msubsup.attributes/@superscriptshift, m:msup.attributes/@superscriptshift, m:mtable.attributes/@minlabelspacing
Source

<xs:simpleType name="length">
  <xs:restriction base="xs:string">
    <xs:pattern value="\s*((-?[0-9]*([0-9]\.?|\.[0-9])[0-9]*(e[mx]|in|cm|mm|p[xtc]|%)?)|(negative)?((very){0,2}thi(n|ck)|medium)mathspace)\s*"/>
  </xs:restriction>
</xs:simpleType>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Complex Type m:annotation-xml.model
Namespace http://www.w3.org/1998/Math/MathML
Diagram
Diagram
Used by
Model
ANY element from ANY namespace
Source

<xs:complexType name="annotation-xml.model">
  <!--content model altered for libxml (annotation-xml)-->
  <xs:sequence>
    <xs:any processContents="lax"/>
  </xs:sequence>
</xs:complexType>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd

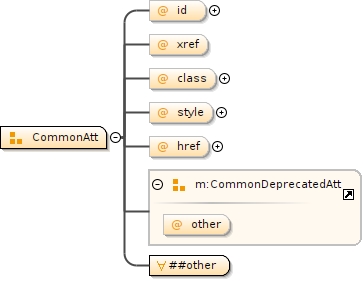

Attribute m:CommonAtt / @id
Namespace No namespace
Type xs:ID
Properties
content simple
Used by
Attribute Group m:CommonAtt
Source

<xs:attribute name="id" type="xs:ID"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:CommonAtt / @xref
Namespace No namespace
Used by
Attribute Group m:CommonAtt
Source

<xs:attribute name="xref"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:CommonAtt / @class
Namespace No namespace
Type xs:NMTOKENS
Properties
content simple
Used by
Attribute Group m:CommonAtt
Source

<xs:attribute name="class" type="xs:NMTOKENS"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:CommonAtt / @style
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Attribute Group m:CommonAtt
Source

<xs:attribute name="style" type="xs:string"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:CommonAtt / @href
Namespace No namespace
Type xs:anyURI
Properties
content simple
Used by
Attribute Group m:CommonAtt
Source

<xs:attribute name="href" type="xs:anyURI"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:CommonDeprecatedAtt / @other
Namespace No namespace
Used by
Attribute Group m:CommonDeprecatedAtt
Source

<xs:attribute name="other"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:DefEncAtt / @encoding
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Attribute Group m:DefEncAtt
Source

<xs:attribute name="encoding" type="xs:string"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:DefEncAtt / @definitionURL
Namespace No namespace
Type xs:anyURI
Properties
content simple
Used by
Attribute Group m:DefEncAtt
Source

<xs:attribute name="definitionURL" type="xs:anyURI"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:annotation.attributes / @cd
Namespace No namespace
Type xs:NCName
Properties
content simple
Used by
Attribute Group m:annotation.attributes
Source

<xs:attribute name="cd" type="xs:NCName"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:annotation.attributes / @name
Namespace No namespace
Type xs:NCName
Properties
content simple
Used by
Attribute Group m:annotation.attributes
Source

<xs:attribute name="name" type="xs:NCName"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:src / @src
Namespace No namespace
Type xs:anyURI
Properties
content simple
Used by
Attribute Group m:src
Source

<xs:attribute name="src" type="xs:anyURI"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:semantics.attributes / @cd
Namespace No namespace
Type xs:NCName
Properties
content simple
Used by
Attribute Group m:semantics.attributes
Source

<xs:attribute name="cd" type="xs:NCName"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:semantics.attributes / @name
Namespace No namespace
Type xs:NCName
Properties
content simple
Used by
Attribute Group m:semantics.attributes
Source

<xs:attribute name="name" type="xs:NCName"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:math.deprecatedattributes / @mode
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Attribute Group m:math.deprecatedattributes
Source

<xs:attribute name="mode" type="xs:string"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:math.deprecatedattributes / @macros
Namespace No namespace
Type xs:string
Properties
content simple
Used by
Attribute Group m:math.deprecatedattributes
Source

<xs:attribute name="macros" type="xs:string"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:name / @name
Namespace No namespace
Type xs:NCName
Properties
use required
Used by
Attribute Group m:name
Source

<xs:attribute name="name" use="required" type="xs:NCName"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute m:cd / @cd
Namespace No namespace
Type xs:NCName
Properties
use required
Used by
Attribute Group m:cd
Source

<xs:attribute name="cd" use="required" type="xs:NCName"/>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Element Group m:semantics
Namespace http://www.w3.org/1998/Math/MathML
Diagram
Diagrammathml3-common_xsd.tmp#semantics_semantics
Used by
Element Group m:MathExpression
Model
Children m:semantics
Source

<xs:group name="semantics">
  <xs:sequence>
    <xs:element name="semantics">
      <xs:complexType>
        <xs:sequence>
          <xs:group ref="m:MathExpression"/>
          <xs:choice minOccurs="0" maxOccurs="unbounded">
            <xs:element ref="m:annotation"/>
            <xs:element ref="m:annotation-xml"/>
          </xs:choice>
        </xs:sequence>
        <xs:attributeGroup ref="m:semantics.attributes"/>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:group>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Element Group m:anyElement
Namespace http://www.w3.org/1998/Math/MathML
Diagram
Diagram
Model
ANY element from ANY namespace OTHER than 'http://www.w3.org/1998/Math/MathML' | ANY element from LOCAL namespace 'No Namespace'
Source

<xs:group name="anyElement">
  <xs:choice>
    <xs:any namespace="##other" processContents="skip"/>
    <xs:any namespace="##local" processContents="skip"/>
  </xs:choice>
</xs:group>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute Group m:CommonAtt
Namespace http://www.w3.org/1998/Math/MathML
Diagram
Diagrammathml3-common_xsd.tmp#CommonAtt_idmathml3-common_xsd.tmp#CommonAtt_xrefmathml3-common_xsd.tmp#CommonAtt_classmathml3-common_xsd.tmp#CommonAtt_stylemathml3-common_xsd.tmp#CommonAtt_hrefmathml3-common_xsd.tmp#CommonDeprecatedAtt_othermathml3-common_xsd.tmp#CommonDeprecatedAtt
Used by
Attribute Groups m:annotation.attributes, m:cbytes.attributes, m:cerror.attributes, m:ci.attributes, m:cn.attributes, m:cs.attributes, m:csymbol.attributes, m:maction.attributes, m:maligngroup.attributes, m:malignmark.attributes, m:math.attributes, m:menclose.attributes, m:merror.attributes, m:mfenced.attributes, m:mfrac.attributes, m:mglyph.attributes, m:mi.attributes, m:mn.attributes, m:mo.attributes, m:mover.attributes, m:mpadded.attributes, m:mphantom.attributes, m:mprescripts.attributes, m:mroot.attributes, m:mrow.attributes, m:ms.attributes, m:mscarries.attributes, m:mscarry.attributes, m:msgroup.attributes, m:msline.attributes, m:mspace.attributes, m:msqrt.attributes, m:msrow.attributes, m:mstack.attributes, m:mstyle.attributes, m:msub.attributes, m:msubsup.attributes, m:msup.attributes, m:mtable.attributes, m:mtd.attributes, m:mtext.attributes, m:mtr.attributes, m:munder.attributes, m:munderover.attributes, m:none.attributes, m:semantics.attributes
Elements m:Differential-Operator.class, m:abs, m:apply, m:approx, m:arg, m:binary-linalg.class, m:binary-logical.class, m:binary-set.class, m:bind, m:bvar, m:ceiling, m:conjugate, m:constant-arith.class, m:constant-set.class, m:divide, m:exp, m:factorial, m:factorof, m:floor, m:imaginary, m:int.class, m:interval.class, m:lambda.class, m:limit.class, m:list, m:minus, m:nary-arith.class, m:nary-constructor.class, m:nary-functional.class, m:nary-linalg.class, m:nary-logical.class, m:nary-minmax.class, m:nary-reln.class, m:nary-set-reln.class, m:nary-set.class, m:nary-stats.class, m:neq, m:otherwise, m:partialdiff.class, m:piece, m:piecewise, m:power, m:product.class, m:quantifier.class, m:quotient, m:real, m:rem, m:root, m:set, m:share, m:sum.class, m:tendsto, m:unary-elementary.class, m:unary-functional.class, m:unary-linalg.class, m:unary-logical.class, m:unary-set.class, m:unary-veccalc.class
Attributes
QName Type Use
class xs:NMTOKENS optional
href xs:anyURI optional
id xs:ID optional
other optional
style xs:string optional
xref optional
Wildcard: ANY attribute from ANY namespace OTHER than 'http://www.w3.org/1998/Math/MathML'
Source

<xs:attributeGroup name="CommonAtt">
  <xs:attribute name="id" type="xs:ID"/>
  <xs:attribute name="xref"/>
  <xs:attribute name="class" type="xs:NMTOKENS"/>
  <xs:attribute name="style" type="xs:string"/>
  <xs:attribute name="href" type="xs:anyURI"/>
  <xs:attributeGroup ref="m:CommonDeprecatedAtt"/>
  <xs:anyAttribute namespace="##other" processContents="skip"/>
</xs:attributeGroup>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute Group m:CommonDeprecatedAtt
Namespace http://www.w3.org/1998/Math/MathML
Diagram
Diagrammathml3-common_xsd.tmp#CommonDeprecatedAtt_other
Used by
Attribute Group m:CommonAtt
Attributes
QName Type Use
other optional
Source

<xs:attributeGroup name="CommonDeprecatedAtt">
  <xs:attribute name="other"/>
</xs:attributeGroup>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute Group m:DefEncAtt
Namespace http://www.w3.org/1998/Math/MathML
Diagram
Diagrammathml3-common_xsd.tmp#DefEncAtt_encodingmathml3-common_xsd.tmp#DefEncAtt_definitionURL
Used by
Attributes
QName Type Use
definitionURL xs:anyURI optional
encoding xs:string optional
Source

<xs:attributeGroup name="DefEncAtt">
  <xs:attribute name="encoding" type="xs:string"/>
  <xs:attribute name="definitionURL" type="xs:anyURI"/>
</xs:attributeGroup>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute Group m:annotation.attributes
Namespace http://www.w3.org/1998/Math/MathML
Diagram
Diagrammathml3-common_xsd.tmp#CommonAtt_idmathml3-common_xsd.tmp#CommonAtt_xrefmathml3-common_xsd.tmp#CommonAtt_classmathml3-common_xsd.tmp#CommonAtt_stylemathml3-common_xsd.tmp#CommonAtt_hrefmathml3-common_xsd.tmp#CommonDeprecatedAttmathml3-common_xsd.tmp#CommonAttmathml3-common_xsd.tmp#annotation.attributes_cdmathml3-common_xsd.tmp#annotation.attributes_namemathml3-common_xsd.tmp#DefEncAtt_encodingmathml3-common_xsd.tmp#DefEncAtt_definitionURLmathml3-common_xsd.tmp#DefEncAttmathml3-common_xsd.tmp#src_srcmathml3-common_xsd.tmp#src
Used by
Attributes
QName Type Use
cd xs:NCName optional
class xs:NMTOKENS optional
definitionURL xs:anyURI optional
encoding xs:string optional
href xs:anyURI optional
id xs:ID optional
name xs:NCName optional
other optional
src xs:anyURI optional
style xs:string optional
xref optional
Source

<xs:attributeGroup name="annotation.attributes">
  <xs:attributeGroup ref="m:CommonAtt"/>
  <xs:attribute name="cd" type="xs:NCName"/>
  <xs:attribute name="name" type="xs:NCName"/>
  <xs:attributeGroup ref="m:DefEncAtt"/>
  <xs:attributeGroup ref="m:src"/>
</xs:attributeGroup>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute Group m:src
Namespace http://www.w3.org/1998/Math/MathML
Diagram
Diagrammathml3-common_xsd.tmp#src_src
Used by
Attribute Group m:annotation.attributes
Element m:share
Attributes
QName Type Use
src xs:anyURI optional
Source

<xs:attributeGroup name="src">
  <xs:attribute name="src" type="xs:anyURI"/>
</xs:attributeGroup>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute Group m:semantics.attributes
Namespace http://www.w3.org/1998/Math/MathML
Diagram
Diagrammathml3-common_xsd.tmp#CommonAtt_idmathml3-common_xsd.tmp#CommonAtt_xrefmathml3-common_xsd.tmp#CommonAtt_classmathml3-common_xsd.tmp#CommonAtt_stylemathml3-common_xsd.tmp#CommonAtt_hrefmathml3-common_xsd.tmp#CommonDeprecatedAttmathml3-common_xsd.tmp#CommonAttmathml3-common_xsd.tmp#DefEncAtt_encodingmathml3-common_xsd.tmp#DefEncAtt_definitionURLmathml3-common_xsd.tmp#DefEncAttmathml3-common_xsd.tmp#semantics.attributes_cdmathml3-common_xsd.tmp#semantics.attributes_name
Used by
Attributes
QName Type Use
cd xs:NCName optional
class xs:NMTOKENS optional
definitionURL xs:anyURI optional
encoding xs:string optional
href xs:anyURI optional
id xs:ID optional
name xs:NCName optional
other optional
style xs:string optional
xref optional
Source

<xs:attributeGroup name="semantics.attributes">
  <xs:attributeGroup ref="m:CommonAtt"/>
  <xs:attributeGroup ref="m:DefEncAtt"/>
  <xs:attribute name="cd" type="xs:NCName"/>
  <xs:attribute name="name" type="xs:NCName"/>
</xs:attributeGroup>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute Group m:math.deprecatedattributes
Namespace http://www.w3.org/1998/Math/MathML
Diagram
Diagrammathml3-common_xsd.tmp#math.deprecatedattributes_modemathml3-common_xsd.tmp#math.deprecatedattributes_macros
Used by
Attribute Group m:math.attributes
Attributes
QName Type Use
macros xs:string optional
mode xs:string optional
Source

<xs:attributeGroup name="math.deprecatedattributes">
  <xs:attribute name="mode" type="xs:string"/>
  <xs:attribute name="macros" type="xs:string"/>
</xs:attributeGroup>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute Group m:name
Namespace http://www.w3.org/1998/Math/MathML
Diagram
Diagrammathml3-common_xsd.tmp#name_name
Attributes
QName Type Use
name xs:NCName required
Source

<xs:attributeGroup name="name">
  <xs:attribute name="name" use="required" type="xs:NCName"/>
</xs:attributeGroup>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
Attribute Group m:cd
Namespace http://www.w3.org/1998/Math/MathML
Diagram
Diagrammathml3-common_xsd.tmp#cd_cd
Attributes
QName Type Use
cd xs:NCName required
Source

<xs:attributeGroup name="cd">
  <xs:attribute name="cd" use="required" type="xs:NCName"/>
</xs:attributeGroup>
Schema location file:/home/fabiobatalha/Work/eruditarticle/deps/mathml/3.0/mathml3-common.xsd
XML Schema documentation generated by ® XML Editor.
